Multi-Tenancy Architecture

Complete tenant isolation patterns for secure SaaS operation.

Tenant Model

Complete tenant isolation with API keys, images, sessions, characters, products

Isolation Layers

Layer 1: API Key Authentication

Validate key, lookup tenant, check active status

Every request includes an API key that maps to exactly one tenant:

const tenant = await authenticateAndResolveTenant(
  request.headers.get('X-API-Key'),
  env
);
// All subsequent operations use tenant.tenantId

Layer 2: Database Row-Level Security

All tables include tenant_id with enforced filtering:

-- Every query filters by tenant
SELECT * FROM images
WHERE tenant_id = ?
  AND prompt LIKE ?
ORDER BY created_at DESC
LIMIT ?;

Schema pattern:

CREATE TABLE images (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    tenant_id TEXT NOT NULL,
    -- other columns
    FOREIGN KEY (tenant_id) REFERENCES tenants(tenant_id)
        ON DELETE CASCADE
);

CREATE INDEX idx_images_tenant ON images(tenant_id);

Layer 3: Storage Path Isolation

R2 keys are prefixed with tenant ID:

{tenant_id}/{date}/{operation}-{random}.{format}

Examples:
acme-corp/2024-01-15/generate-abc123.png
acme-corp/2024-01-15/generate-abc123-thumb.jpg
creative-studio/2024-01-15/edit-xyz789.png

const r2Key = `${tenantId}/${dateFolder}/${operation}-${randomId}.${format}`;
await env.R2_IMAGES.put(r2Key, imageBuffer);

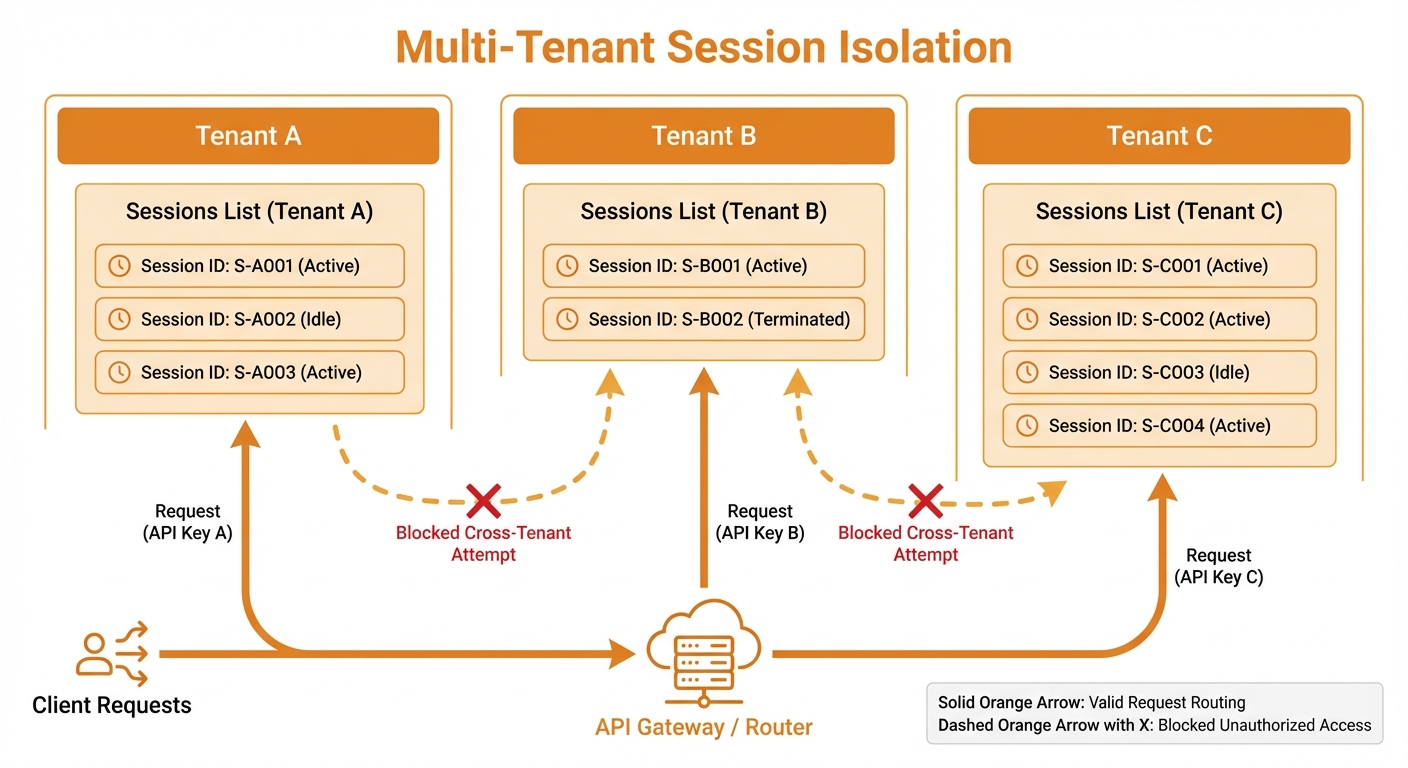

Layer 4: Session Isolation

Sessions are scoped to tenant:

Each tenant's sessions and images are completely isolated

-- Session creation
INSERT INTO sessions (session_id, tenant_id, ...)
VALUES (?, ?, ...);

-- Session lookup always includes tenant
SELECT * FROM sessions
WHERE session_id = ? AND tenant_id = ?;

Tenant Configuration

Tenant Record

interface Tenant {
  tenantId: string;
  name: string;
  encryptedGeminiKey: string;  // AES-GCM encrypted (legacy column kept for back-compat)
  iv: string;                   // Initialization vector for the legacy column
  allowedModels: ModelId[];    // e.g. ['gemini-flash-image', 'openai-gpt-image-2']
  defaultModelId: ModelId;
  monthlyQuotaMb: number;
  rateLimitPerMinute: number;
  isActive: boolean;
  createdAt: string;
}

// Provider keys live in their own table and are encrypted independently
interface TenantProviderCredential {
  tenantId: string;
  provider: 'gemini' | 'openai';
  encryptedKey: string;        // AES-GCM
  iv: string;
  isActive: boolean;
}

Resolved Tenant (Runtime)

After authentication, the tenant context includes decrypted credentials for whichever provider the request is routed to. Other providers' keys are NOT decrypted unless needed.

interface ResolvedTenant {
  tenantId: string;
  name: string;
  allowedModels: ModelId[];
  defaultModelId: ModelId;
  providerCredentials: {
    gemini?: { apiKey: string; isActive: boolean };
    openai?: { apiKey: string; isActive: boolean };
  };
  quotas: {
    monthlyMb: number;
    usedMb: number;
    rateLimitPerMinute: number;
  };
}

API Key Management

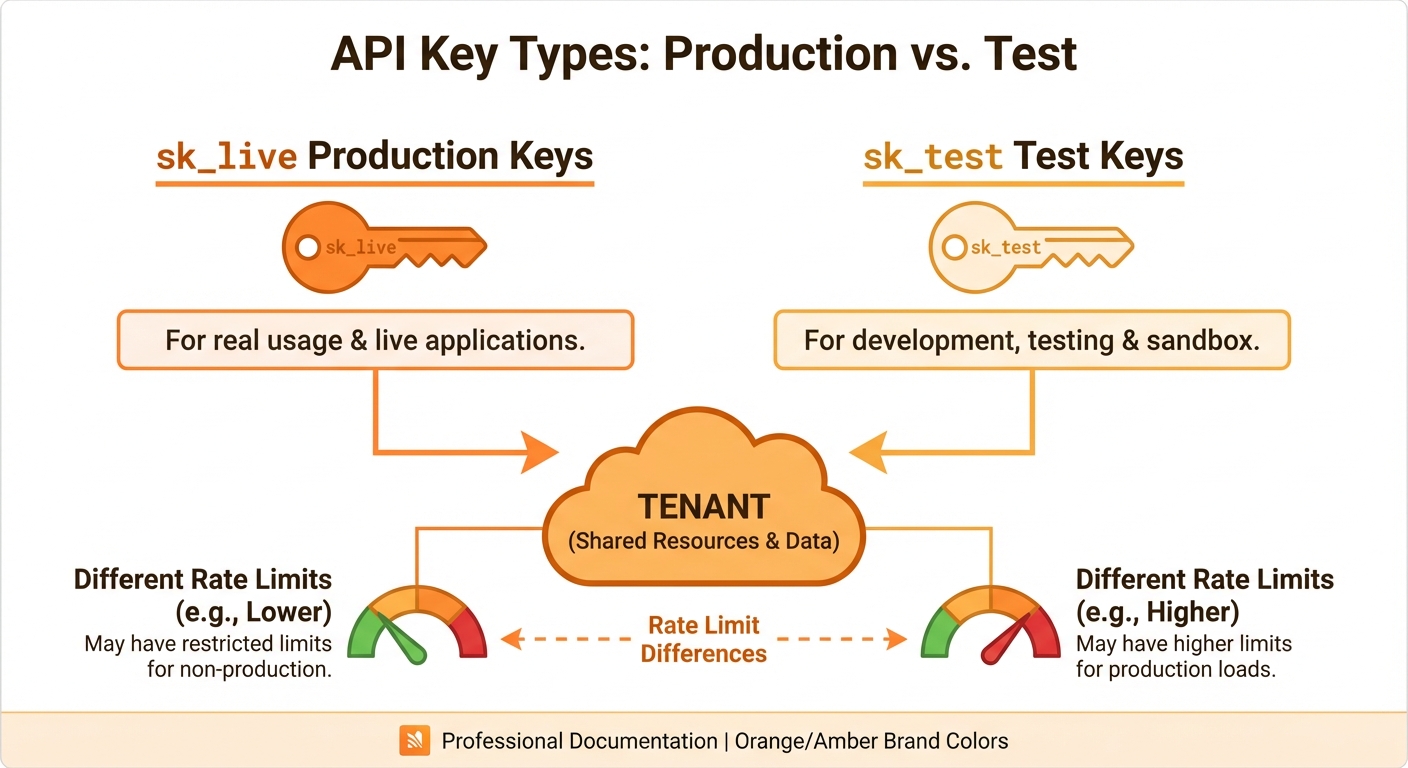

Key Types

Type	Format	Purpose
Live	sk_live_xxx	Production use
Test	sk_test_xxx	Development/testing

Multiple Keys per Tenant

Production, backup, and test keys all map to one tenant

Use cases:

• Separate keys for different applications
• Key rotation without downtime
• Test keys for development

Key Lifecycle

Created → Active → Revoked lifecycle with usage tracking

Quota Management

Storage Quota

Check quota, allow/reject, track usage levels

Quota calculation:

SELECT COALESCE(SUM(size_bytes) / 1048576.0, 0) as used_mb
FROM images
WHERE tenant_id = ?;

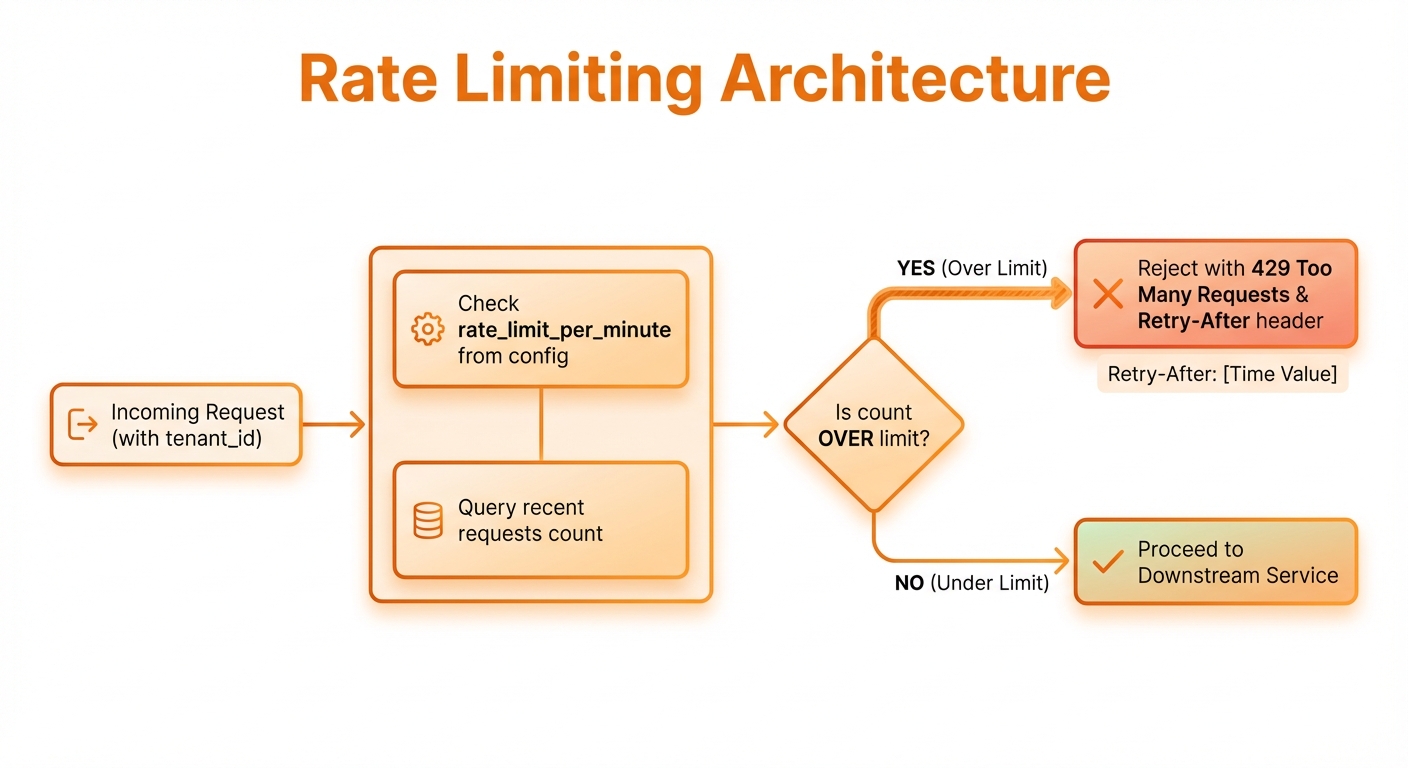

Rate Limiting

Track requests per minute, enforce limits, return 429 when exceeded

Implementation:

SELECT COUNT(*) FROM usage_logs
WHERE tenant_id = ?
  AND timestamp > datetime('now', '-1 minute');

Data Cascade Deletion

When a tenant is deleted:

Cascade delete all data in D1 and clean up R2 storage

SQL cascade:

-- Foreign key with cascade
FOREIGN KEY (tenant_id) REFERENCES tenants(tenant_id)
    ON DELETE CASCADE

R2 cleanup:

async function cleanupTenantStorage(tenantId: string, env: Env) {
  const prefix = `${tenantId}/`;
  const objects = await env.R2_IMAGES.list({ prefix });

  for (const object of objects.objects) {
    await env.R2_IMAGES.delete(object.key);
  }
}

Cross-Tenant Protection

Query Parameter Validation

All queries include tenant context:

// WRONG - allows cross-tenant access
const image = await db.prepare(
  'SELECT * FROM images WHERE id = ?'
).bind(imageId).first();

// CORRECT - enforces tenant isolation
const image = await db.prepare(
  'SELECT * FROM images WHERE id = ? AND tenant_id = ?'
).bind(imageId, tenantId).first();

Reference Validation

When referencing other records:

// Validate character belongs to tenant
const character = await db.prepare(
  'SELECT * FROM characters WHERE id = ? AND tenant_id = ?'
).bind(characterId, tenantId).first();

if (!character) {
  throw new Error('Character not found');
}

R2 Key Validation

Before serving images:

// Ensure R2 key matches tenant
if (!r2Key.startsWith(`${tenantId}/`)) {
  throw new Error('Unauthorized access');
}

Admin Operations

Tenant Creation

Validate admin, encrypt credentials, generate API key

Cross-Tenant Queries (Admin Only)

// Admin-only: list all tenants
if (!isAdmin) {
  throw new Error('Unauthorized');
}

const tenants = await db.prepare(
  'SELECT * FROM tenants'
).all();

Best Practices

1. Always Include Tenant Context

// Every function receives tenantId
async function getImages(
  tenantId: string,
  filters: ImageFilters
): Promise<Image[]>

2. Validate at Service Boundaries

// Validate in tool handler before any operations
const validatedInput = ImageInputSchema.parse(input);
// Then pass tenantId through all layers

3. Use Prepared Statements

// Prepared statements prevent SQL injection
const stmt = db.prepare(
  'SELECT * FROM images WHERE tenant_id = ? AND id = ?'
);
await stmt.bind(tenantId, imageId).first();

4. Log with Tenant Context

console.log({
  tenantId,
  operation: 'generate_image',
  imageId: result.id,
  duration: Date.now() - startTime
});
